Description
View product specs:

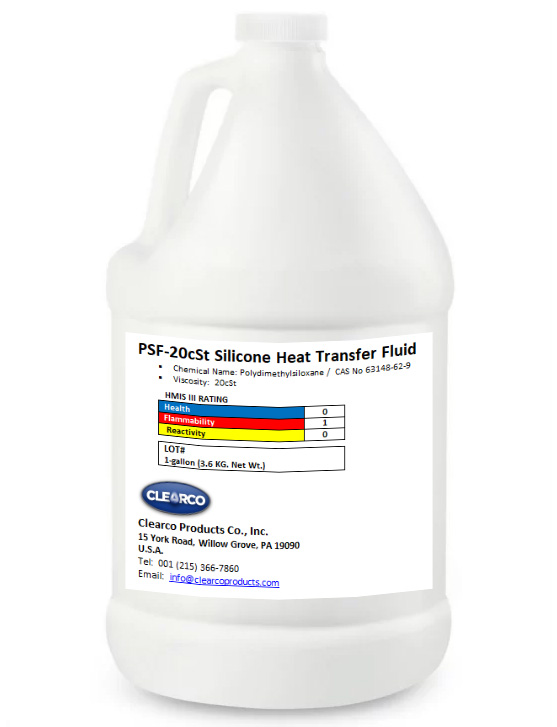

PSF-20cSt Silicone Heat Transfer Fluid (-50°C to 220°C)
PSF-50cSt Silicone Heat Transfer Fluid (-40°C to 230°C)
PSF-100cSt Silicone Heat Transfer Fluid (-40°C to 230°C)
* Service temperature ranges reflect closed system
View SDS:
PSF-20cSt Silicone Heat Transfer Fluid
PSF-50cSt Silicone Heat Transfer Fluid
PSF-100 Silicone Heat Transfer Fluid
Availability: 1‐gallon (3.785 liters), 5‐gallon pail (18.9 liters) & 55‐gallon drum
Product Offsets: Baysilone Oil M3, Baysilone Oil M5, Baysilone Oil M10, Baysilone Oil M20, Baysilone KT3, Baysilone KT5, Baysilone KT10, Baysilone KT20, Dow Corning 200® Fluid, 1.5cs, Dow Corning 200® fluid, 2cs, Dow Corning 200® fluid, 5cs, Dow Corning 200® fluid, 10cs, Dow Corning 200® fluid, 20cs, Dow Syltherm® XLT, Xiameter PMX 200, 1.5cs, Xiameter ® PMX‐200, 2cs, Xiameter® 200, 5cs, Xiameter® 200, 10cs, Xiameter ® PMX‐200, 20cs, Momentive Element 14® PDMS 5, Momentive Element 14® PDMS 10, Momentive Element 14® PDMS 20, Dow Syltherm® 800
Description: Medium Temperature Silicone Heat Transfer Fluids are clear, colorless, and odorless linear Polydimethylsiloxane fluids / PDMS Silicone Oils that range in viscosities from 20cSt to 100cSt (centistokes) @ 25°C. They are characterized by their low viscosities, good heat capacity, low pour points, wide service temperature range, high flash points, stability at both high and low temperatures, low vapor pressure, low thermal expansion at elevated temps, low viscosity change at temperature (low VTC), hydrophobic nature, high dielectric strength, Newtonian behavior under shear, stability under high pressure, and RI values ranging from 1.4009 to 1.4030.
Silicone Heat Transfer Fluids are widely used in Flow Control, Temperature Control, Electronic Control and Pressure Control Technologies & Instruments. They are particularly effective for use in instruments and gauges that will operate at extreme temperatures and high pressure. The low VTC values of Silicone Heat Transfer Fluids make them especially useful in systems and equipment that need to circulate and pump the fluid at low temperatures: refrigerated systems, cooling systems, low temperature baths, chiller baths, refrigerated baths & closed loop systems.
See also Silicone Bath Fluids & Dielectric Silicone Fluids
Silicone Heat Transfer Fluids are hydrophobic and prevent humidity from entering the gauge/instrument housing. This is very important. At low temperatures, water condensation can freeze and cause damage to the sensitive parts within the gauge/instrument housing. Ultimately, Silicone Heat Transfer Fluids will extend the service life of the equipment that it fills and provide more accurate readings even in the harshest of conditions.
Product Data:
| Viscosity (cSt) | Specific Gravity | Refractive Index | Pour Point | Flash Point (open cup) | V.T.C | Thermal Expansion cc/cc °C | Thermal Conductivity g/cal/cm/sec °C |
|---|---|---|---|---|---|---|---|
| 20 | 0.950 | 1.4009 | -65°C | 232°C | 0.59 | 0.00107 | 0.00034 |
| 50 | 0.960 | 1.4020 | -55°C | 285°C | 0.59 | 0.00106 | 0.00036 |
| 100 | 0.966 | 1.4030 | -55°C | 315°C | 0.60 | 0.00096 | 0.00037 |
Properties:
- Good Heat Capacity
- Viscosity that is easy to pump & circulate
- Low Pour Points
- High Flash Points
- Stable at extreme temperatures
- Low Temperature Damping Fluid for vibration & sound
- Low viscosity change at temperature (low VTC)
- Hydrophobic nature
- RI Values between 1.4009 to 1.4030
- High Dielectric Strength
- Newtonian behavior under shear
- Inert to virtually all components
- Low vapor pressure at elevated temps
- Low weight fluid…lighter than water
Applications Include:
- Heat Transfer Medium for Freeze Dryers
- Heat Transfer Fluid for Flow Control
- Heat Transfer Fluid for Temperature Control
- Heat Transfer Fluid for Electronic Controls
- Heat Transfer Fluid for Pressure Control
- Protect internal components of gauges and instruments against vibration, freezing & corrosion
- Dielectric Coolants for electronic sensors
- ORC Turbo Generator Fluids
- Low Viscosity Hydraulic Fluids
- High Pressure fluid for Subsea
- High Pressure fluid for Oil & Gas Exploration
- Dielectric Fluids for Lighting Systems
- Refractive Index Matching Fluids
- RI Matching Fluids for LED and Optics
- Low Dielectric Constant Fluids for Photonics
- VOC Exempt Fluids for Renewable Energies
- PDMS Silicone Oil for Seismic Research
- Dampen vibration in gauges, instruments, meters and control equipment
- PDMS Lubricants for Rubber Parts
- Laboratory Bath Fluid
- Low temperature circulating bath fluid
- Low Temperature refrigerated bath fluid
- Low Temperature closed loop bath fluid
- Temperature Calibration Fluid
Industries & Fields of Research include: R&D, Education, Defense, Oil & Gas Exploration, Energy, Aviation, Aerospace, Telecommunications, Rotorcraft, Renewable Energies, Couplings Manufacturers, Automotive, Valve & Gasket Manufacturers, Turbine Technology, Pressure Control Technology, Temperature Control Technologies, Process Measure & Control Technologies, Flow Management Products, Electro‐Hydraulic, Temperature Measurement Technologies, Geothermal, Electronics, Sensor Technology, Geosciences, Environmental, Electrical Testing, Optics, LED, Architectural Testing, Photonics, MEMS Micro‐Electro‐Mechanical Systems, Refractive Index Matching Digital Display Technology, Flow Control Technology, Deep Sea / Subsea Technologies, Wire & Cable Industry, Fluid Power, Cable Manufacturers, Telecommunications Cables, Deepwater, ROV Technologies Earth & Atmospheric Sciences, Seismic Research, Oceanography Research, Geothermal, Physical Sciences, Chemical Engineering, Mechanical Engineering, Polymer Research, Polymer Manufacturing, Polymer Testing, Computer Engineering Research, Robotics Research, Wind Technology, Plastic Manufacturing, Thin Film Coating Technology, Hydraulics, Lighting Systems, Seismology, Aeronautics, Pipe & Tubing Systems, Fiber Optics Technology, Touch Monitor Technology.
Silicone Heat Transfer Fluids are widely used in the following: pressure gauges, pressure control instruments, pressure testing equipment, temperature testing equipment, temperature control equipment, pumps, pipeline equipment, flow testing equipment, flow level sensors, electronic sensors, level controllers, rotary dampers, geothermal monitoring equipment, seismology instruments, temperature recorders, temperature measurement equipment, process instruments, process recorders, level sensors, control valves, calibration equipment, flow control instruments, laboratory research instruments, digital display meters, gravity meters, testing equipment, testing instruments, monitoring equipment, pulsation dampeners, level instruments, electro hydraulic actuators, flow meters, thermostats, industrial thermometers, dashpots, aviation instruments, aviation gauges, electronic timer systems, control cables, optical instruments, aviation gyroscopes, process control equipment, test equipment, shock testing equipment, high pressure gauges, subsea gauges, process, gauges, subsea instruments, subsea cables, shock dampeners for R/C vehicles, underwater vehicles, deep sea instruments, deep sea lighting equipment, deep sea cameras, deep sea sensors, deep sea robotics, liquid filled gauges, level controllers, rotary dampers, temperature and process recorders, control valves, calibration equipment, flow meters, thermostats, industrial thermometers, monitoring systems, avionic gauges and aviation instruments.
Environmental: Silicone Fluids are exempt from Federal VOC regulations, including California (CARB) and OTC regulations. They are HAP‐free and do not contribute to ozone‐depletion and global warming. In addition, they meet RoHS Compliancy and are REACH Compliant.
